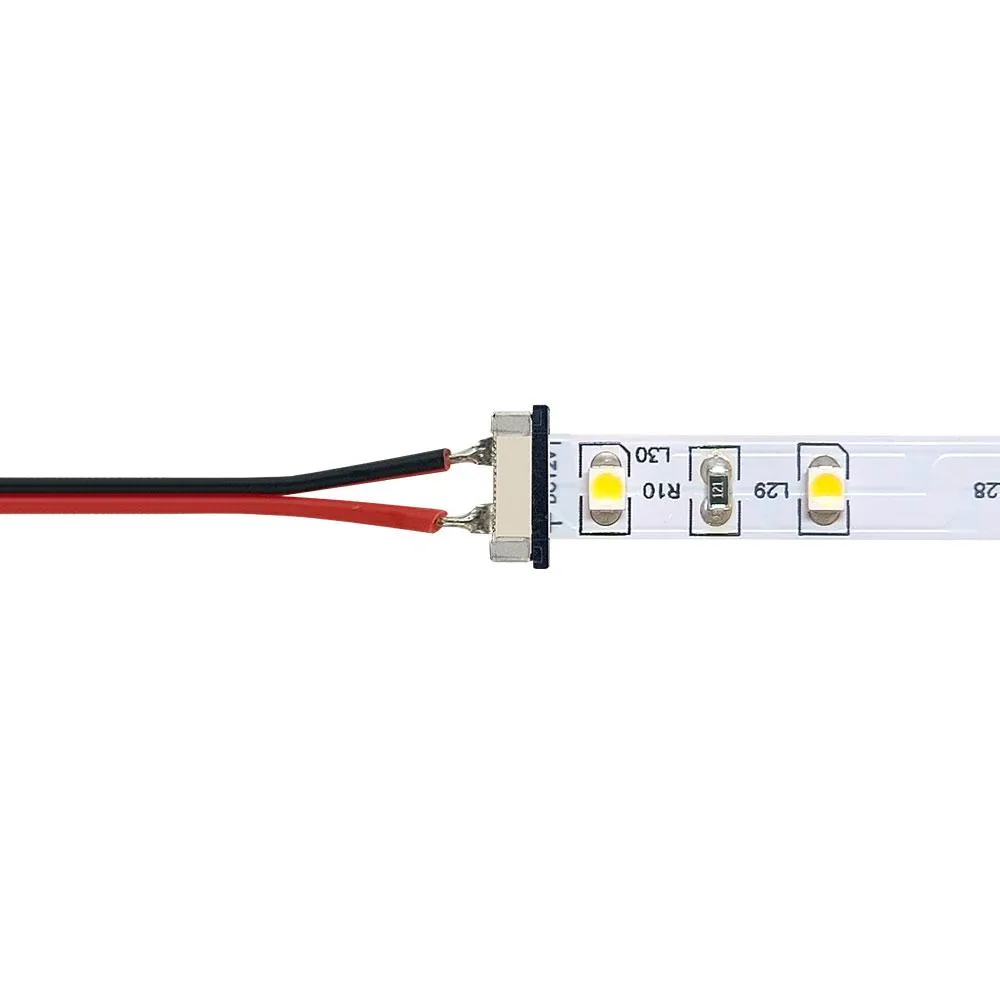

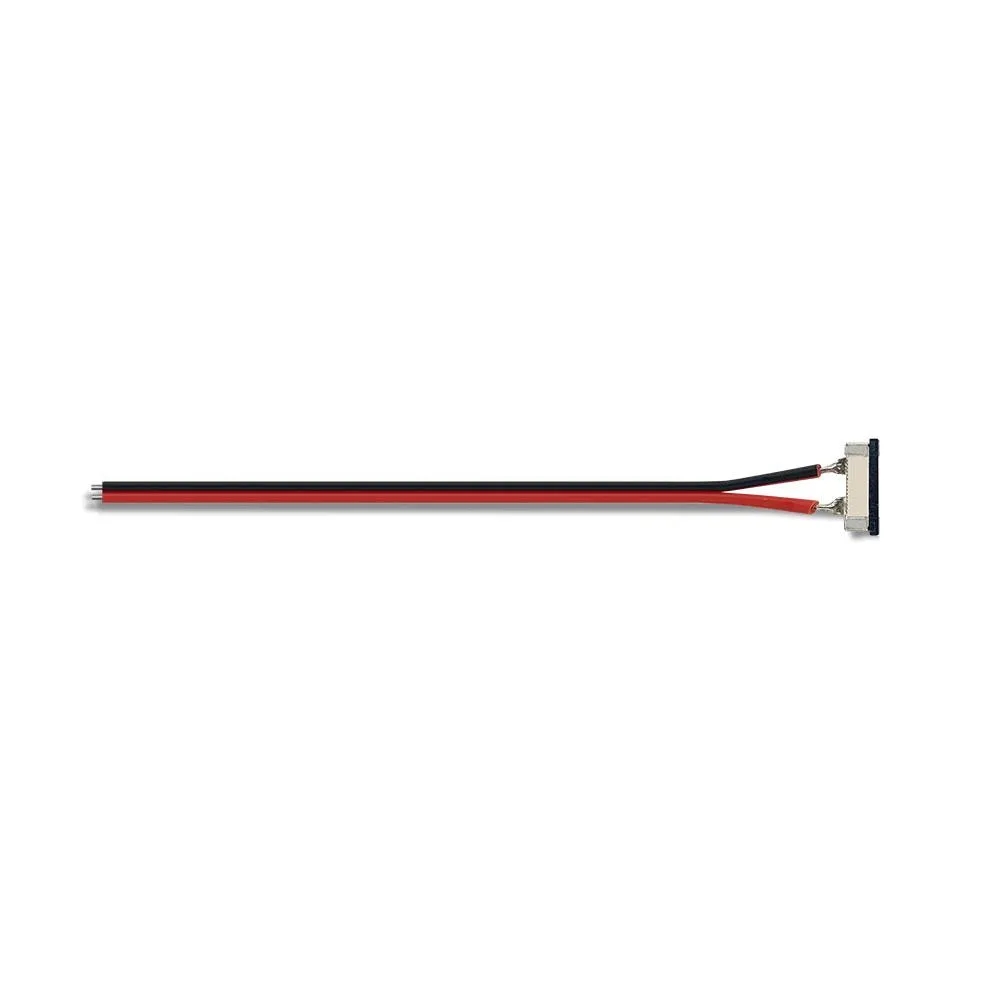

The LED 6 inch Slide-on Tape Light Power Feed is compatible with our 8mm or 10mm 12V DC LED tape lights. It can be hardwired into the LED Driver.

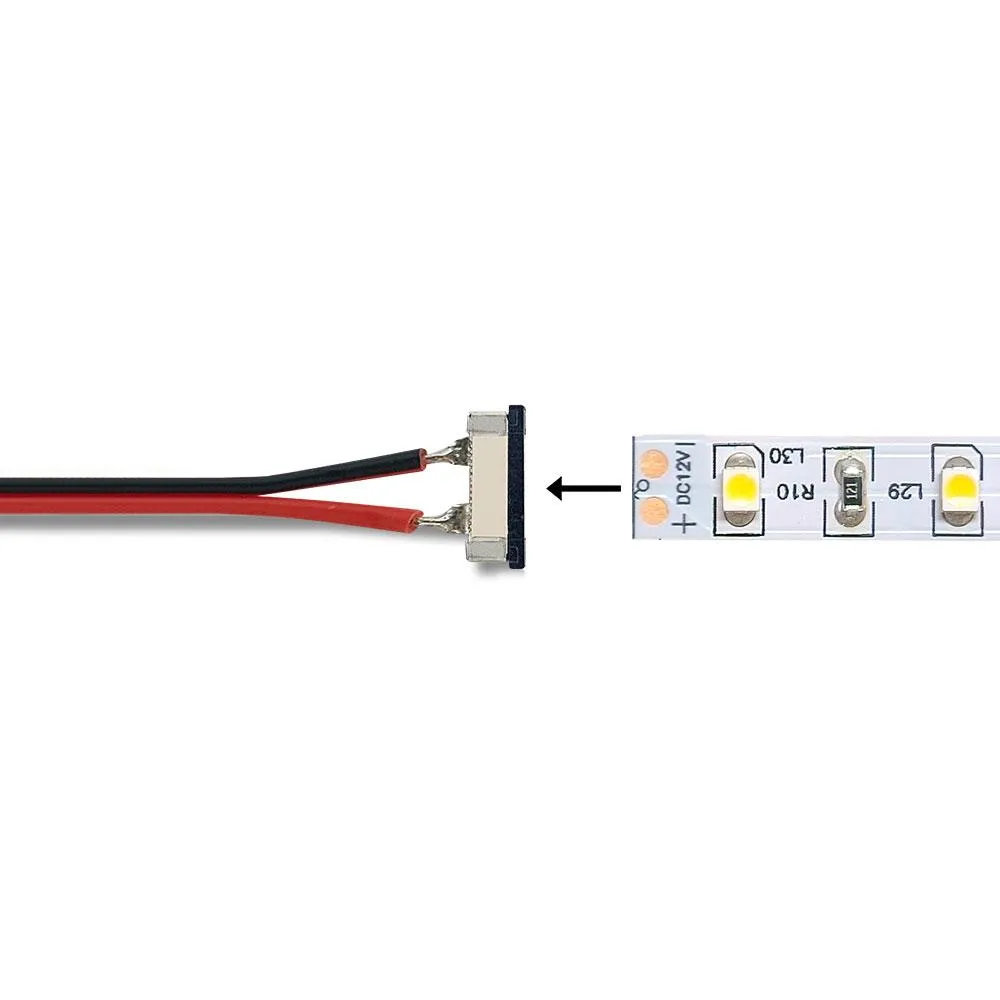

Installation is easy, slide the LED tape light directly into the power feed connector. Make sure to check the connections Positive (red wire) and -Negative (black wire) sides are correspondent.
Specifications
- Input Voltage: 12V DC
- Clip-On Connector Sizes: 8 mm or 10 mm wide
- Power Feed Length: 6 in
- Power Feed Length (metric): 152 mm
- Wire Gauge: ~22 AWG
- Conductors: 2 (Postive , Negative -)
- Environment: Dry Location
- Warranty: 1 year
