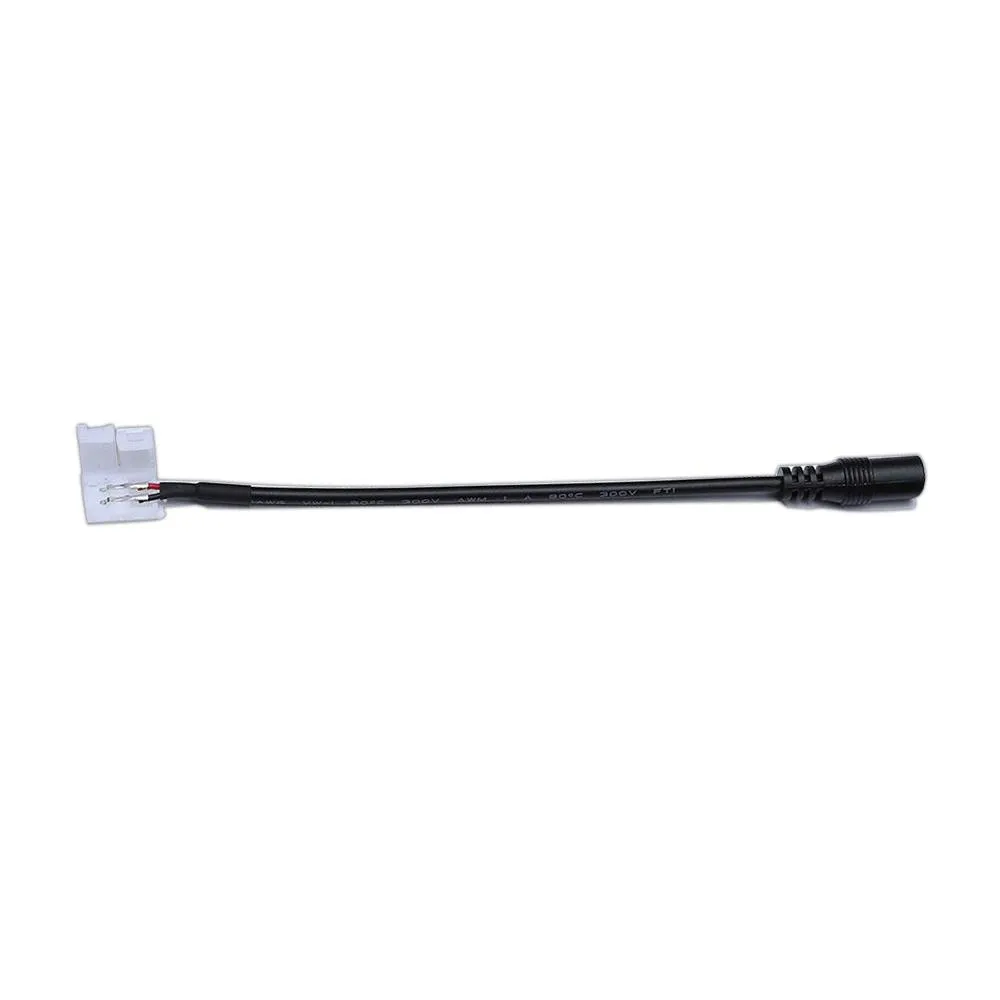

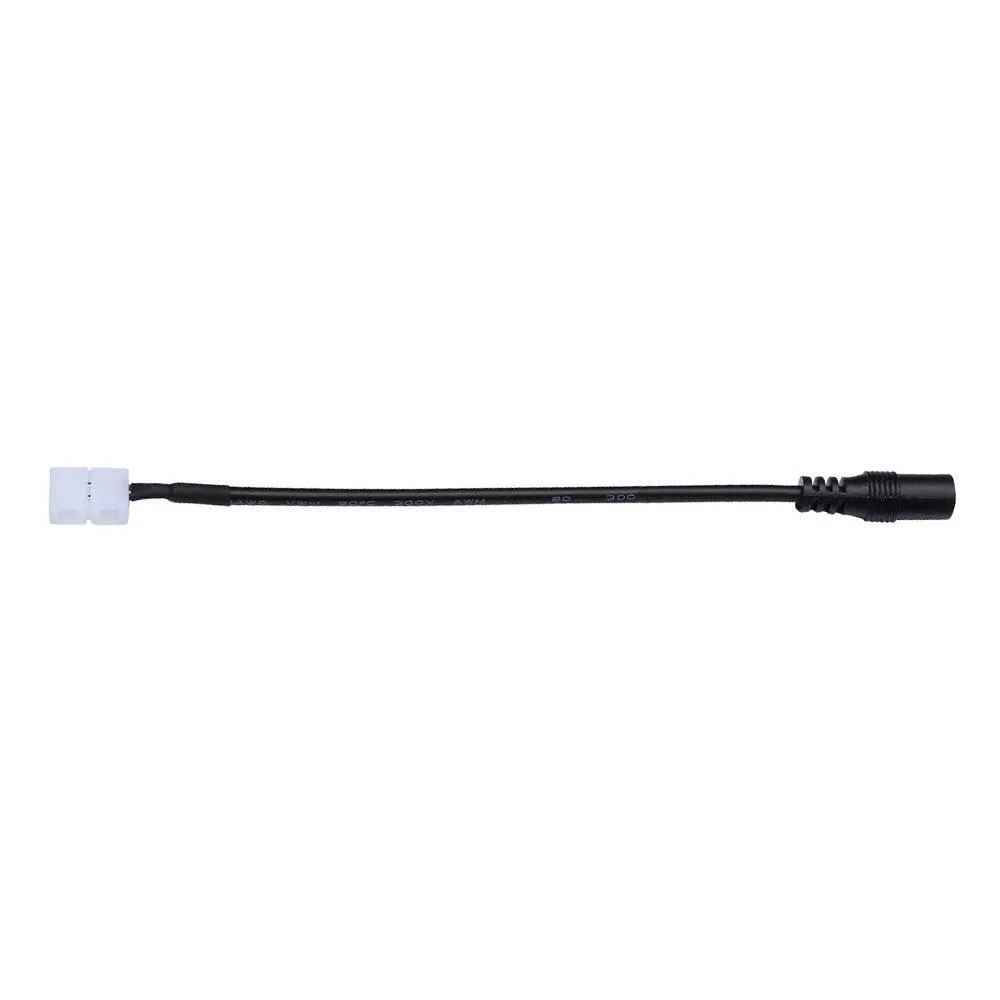

The Plug N Play LED Tape Light 18 inch DC Power Feed is compatible with our single color 12V LED tape light. The DC Power Feed is a simple, secure connector for connecting our single color LED ribbon tape lights to a power source. This LED connector eliminates the need to solder or hard-wire. It is easy to use and provides a secure connection. Available in 8mm or 10mm Clip-On connector width options.
Applications

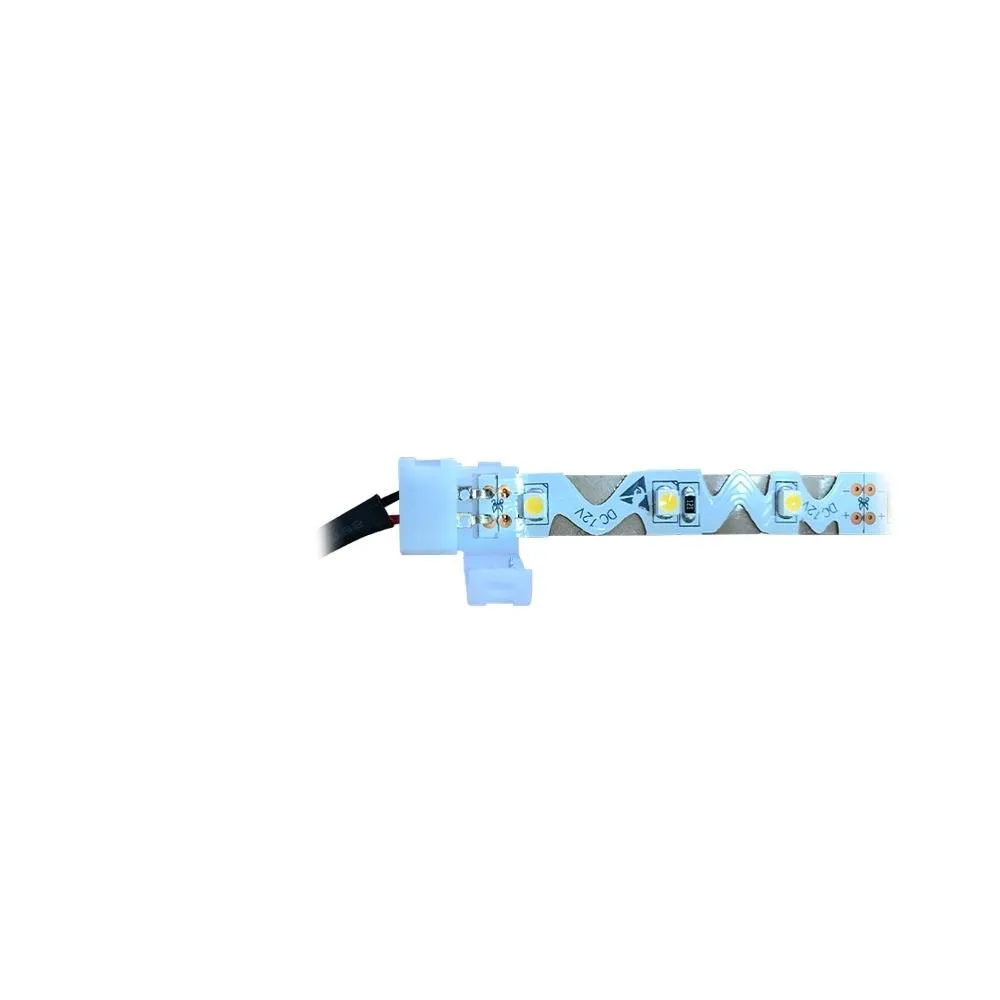

The 2-Pin Clip-On Connector to DC Power Feed makes it simple to connect LED Tape light to the LED Power supply. Slip the power feed clip-on connector to the LED strip then fold over the cap and securely lock it into place without any soldering. The other end of the power feed is a female 2.1 mm inside diameter barrel plug that fits our plug n play drivers and adapters.
Specifications
- Input Voltage: 12V DC
- Clip-On Connector Sizes: 8 mm or 10 mm wide
- DC Barrel Plug Size: 2.1 mm (inside diameter)
- Power Feed Length: 18 in
- Power Feed Length (metric): 457 mm
- Wire Gauge: ~18 AWG
- Conductors: 2 (Postive , Negative -)
- Environment: Dry Location
- Warranty: 1 year
